Slip on Flange Supplier In Chile

Dhanratan Steel Industries is a supplier of slip-on flanges in Chile, and its products are made with high accuracy. Our slip on flanges are developed to create pipeline connections and are easy to install while adding more strength. These flanges are commonly used in oil and gas, petrochemicals, power generation and water treatment applications, where reliability is critical.

Stainless Steel Slip on Flanges, Carbon Steel Slip On Flanges, Alloy Steel Slip On Flanges, Duplex Steel SORF Flanges Leading Manufacturers, Class 150 Forged Steel Raised Face Slip-on Flanges, ANSI B16.5 Slip on Flanges, ANSI B16.47 Slip on Flanges Suppliers, MSS SP44 Slip on Flanges, ANSI / ASME / BS / DIN / EN Slip on Flanges, ASTM A 182, A240 SS Slip on Flanges Exporter.

These welding slip on flanges are produced following international standards for the best quality and performance. To resist corrosion and high temperature and pressure, these flanges are made with high-quality materials, including stainless steel, carbon steel, and alloy steel. Our products come in various sizes and can be ordered in sizes such as 150 lbs slip on flanges depending on the needs of the particular application.
Our company boasts an affordable price policy that does not affect the quality of the services. SORF Flanges are relatively affordable and are produced with the help of quality assurance standards. Every flange is thoroughly tested and checked to conform to the required standard and may be accredited to iso 9001 quality assurance. This commitment to quality enables us to retain our customers and develop sustainable business relationships with them.

Slip-On Flanges Manufacturer, Weld Neck Flanges Stockist, Blind Flanges, Socket Weld Flanges Supplier, Threaded Flanges, Lap Joint Flanges, Orifice Flanges Exporter, Reducing Flanges, Forged Flanges, ANSI Flanges, API Flanges, BS Flanges Supplier in Chile.

The slip on flanges are used in different industries and we are among the best suppliers for industries needing quality, affordable and certified flanges. Our welding Stainless Steel Slip-on Flanges can be used in low-pressure and high-temperature applications and offer a secure pipeline joining.
We take quality measures of the products that we offer and in delivering the products on time and in the most efficient manner. The deadlines for the projects are crucial, and our logistics department guarantees the delivery of orders in Chile or any other country. Special attention is paid to the packaging process to ensure that flanges are protected and cannot be damaged.

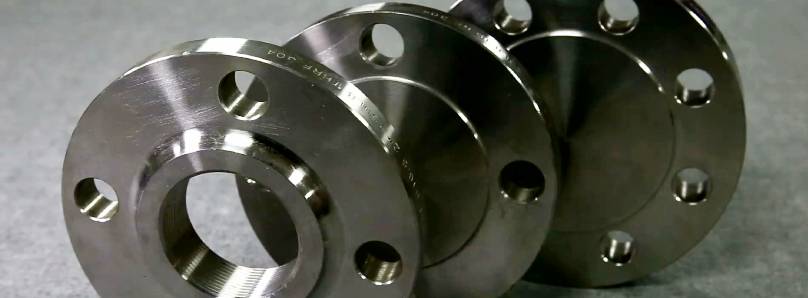

Slip on Flange in Chile

Specifications of Slip on Flange in Chile

ASME B16.9 Slip on Flange Dimensions ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
ASME B16.5 SORF Plate Flanges Size 1/2″ (15 NB) to 48″ (1200NB)
ASME B16.5 SORF Pipe Flanges Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Flange Face Type ASME B16.9 Flate Face (FF), ASME B16.9 Raised Face (RF), ASME B16.9 Ring Type Joint (RTJ)
Value-Added Services CNC Machining, Customised Flanges
Slip-on Raised Face Flanges For DIN DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
Stainless Steel slip on flange flat face For BS BS4504 , BS4504, BS1560, BS10
Slip-On Flange Manufacturers & Coating/Surface Treatment Antirust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized

Material & Grades of Slip on Flange in Chile

Stainless Steel Slip on Flange : ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L

Super Duplex Steel Slip on Flange : S32750

Duplex Steel Slip on Flange : UNS NO S31803, S32205, S32550, S32750, S32760.

Carbon Steel Slip on Flange : ASTM A105 / ASME SA105 ASTM / ASME A 350 , ASTM A181 LF2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Low Temperature Carbon Steel Slip on Flange: ASTM A350, LF2, LF3

Alloy Steel Slip on Flange : ASTM / ASME A 182 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91.

Nickel Alloys Slip on Flange : Nickel Alloys 200, Nickel Alloys 201

Titanium Slip on Flange : Grade 1, Grade 4, Grade 5(Ti 6Al-4V), Grade 6(Ti 5Al-2.5Sn), Grade 7, Grade 11, Grade 12, 8Ai-1Mo-1V, Grade 9(3Al-2.5V), 6Al-6V-25n, 6Al-2Sn-4Zr-2Mo, 6Al-7Nb, Grade 23(Ti 6AL-4V ELI), Grade 5 ELI

Inconel Slip on Flange : Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L

Hastelloy Slip on Flange : Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G

Molybdenum Slip on Flange : ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91, ASTM B387, Ferro Molybdenum

Cobalt Slip on Flange : Cobalt HS-6, Cobalt HS-4, Cobalt HS-25, Sterlite Grade 1, Sterlite Grade 6, Sterlite Grade 12, Sterlite Grade 21

Niobium Slip on Flange : ASTM B394, R04200 R04210

Nimonic Slip on Flange : Nimonic75, Nimonic80, Nimonic85, Nimonic90, Nimonic263, etc

Tungsten Slip on Flange : W1 WAl1, W61, etc, Carbonide Tungsten, Copper Tungsten, Nickel Tungsten

Nichrome Slip on Flange : Nichrome90, Nichrome80, Nichrome80A, Nichrome RW80, Nichrome75, etc

Magnesium Slip on Flange : Magnesium AL017100, AL017140, AL017150, AL017160, AL017200, AL017210, AL017250, etc.

Tantalum Slip on Flange : Tantalum – Grade 1.

Monel Slip on Flange : Monel 400, Monel k500

MU-METAL Slip on Flange : MU-METAL

Zirconium Slip on Flange : Zirconium 702, Zirconium 705, Zirconium 705, Zirconium-2, Zirconium-4

Beryllium Copper Slip on Flange : Alloy 25 UNSC17200

Aluminium Slip on Flange : 1050,1100, 2017, 7150, 7178, 7575, 2050, 7085, 2011 A92011, 2014A A92014, 2024 A92024, 2219, 5052 A95052, 5083 A95083, 5754, 6061 A96061 A86061, 6063, 6082 A96082, 7071 7020, 7050 A97050, 7075 A97075 A87075, 7175

Copper Alloys Slip on Flange : C 11000, C 10200, C 12200, C 51100, C 51000, C 51900, C 52000, C 52100, C 74500, C 75700, C 75400, C 76400, C 77000, C 21000, C 22000, C 23000, C 24000, C 26000, C 26800, C 27000, C 27200, C 28000

Dimensions of Slip On ASME B16.5 in Chile

1.5LBS

  Drilling
Nominal Bore Dia. (D) Thick. (E) Dia. (F) Dia. (B) Dia. (A) Height1 (H) Nbr Holes Dia. (C)
1/2″ 90 9.6 35.05 30 22.2 14 4 15.87 60.3
3/4″ 100 11.2 42.93 38 27.7 14 4 15.87 69.9
1″ 110 12.7 50.80 49 34.5 16 4 15.87 79.4
1 1/4″ 115 14.3 63.50 59 43.2 19 4 15.87 88.9
1 1/2″ 125 15.9 73.15 65 49.5 21 4 15.87 98.4
2″ 150 17.5 91.95 78 61.9 24 4 19.05 120.7
2 1/2″ 180 20.7 104.65 90 74.6 27 4 19.05 139.7
3″ 190 22.3 127.00 108 90.7 29 4 19.05 152.4
3 1/2″ 215 22.3 139.70 122 103.4 30 8 19.05 177.8
4″ 230 22.3 157.22 135 116.1 32 8 19.05 190.5
5″ 255 22.3 185.67 164 143.8 35 8 22.22 215.9
6″ 280 23.9 215.90 192 170.7 38 8 22.22 241.3
8″ 345 27.0 269.75 246 221.5 43 8 22.22 298.5
10″ 405 28.6 323.85 305 276.2 48 12 25.40 362.0
12″ 485 30.2 381.00 365 327.0 54 12 25.40 431.8
14″ 535 33.4 412.75 400 359.2 56 12 28.57 476.3
16″ 595 35.0 469.90 457 410.5 62 16 28.57 539.8
18″ 635 38.1 533.40 505 461.8 67 16 31.75 577.9
20″ 700 41.3 584.20 559 513.1 71 20 31.75 635.0
24″ 815 46.1 692.15 663 616.0 81 20 34.92 74

1,6mm raised face not included in the E & H dimensions

300 LBS
Drilling
Nominal Bore Dia.
(D)		 Thick.
(E)		 Dia.
(F)		 Dia.
(B)		 Dia.
(A)		 Height1
(H)		 Nbr Holes Dia.
(C)
1/2″ 21.3 12.7 35.05 38 22.2 21 4 15.87 66.7
3/4″ 26.7 14.3 42.93 48 27.7 24 4 19.05 82.6
1″ 33.4 15.9 50.80 54 34.5 25 4 19.05 88.9
1 1/4″ 42.2 17.5 63.50 64 43.2 25 4 19.05 98.4
1 1/2″ 48.3 19.1 73.15 70 49.5 29 4 22.22 114.3
2″ 60.3 20.7 91.95 84 61.9 32 8 19.05 127.0
2 1/2″ 73.0 23.9 104.65 100 74.6 37 8 22.22 149.2
3″ 88.9 27.0 127.00 117 90.7 41 8 22.22 168.3
3 1/2″ 101.6 28.6 139.70 133 103.4 43 8 22.22 184.2
4″ 114.3 30.2 157.22 146 116.1 46 8 22.22 200.0
5″ 141.3 33.4 185.67 178 143.8 49 8 22.22 235.0
6″ 168.3 35.0 215.90 206 170.7 51 12 22.22 269.9
8″ 219.1 39.7 269.75 260 221.5 60 12 25.40 330.2
10″ 273.0 46.1 323.85 321 276.2 65 16 28.57 387.4
12″ 323.8 49.3 381.00 375 327.0 71 16 31.75 450.8
14″ 355.6 52.4 412.75 425 359.2 75 20 31.75 514.4
16″ 406.4 55.6 469.90 483 410.5 81 20 34.92 571.5
18″ 457.0 58.8 533.40 533 461.8 87 24 34.92 628.6
20″ 508.0 62.0 584.2td> 587 513.1 94 24 34.92 685.8
24″ 610.0 68.3 692.15 702 616.0 105 24 41.27 812.8
1,6mm raised face not included in the E & H dimensions

600 LBS

  Drilling
Nominal Bore Dia.
(D)		 Thick.
(E)		 Dia.
(F)		 Dia.
(B)		 Dia.
(A)		 Height1
(H)		 Nbr Holes Dia.
(C)
1/2″ 21.3 14.3 35.05 38 22.2 22 4 15.87 66.7
3/4″ 26.7 15.9 42.93 48 27.7 25 4 19.05 82.6
1″ 33.4 17.5 50.80 54 34.5 27 4 19.05 88.9
1 1/4″ 42.2 20.7 63.50 64 43.2 29 4 19.05 98.4
1 1/2″ 48.3 22.3 73.15 70 49.5 32 4 22.22 114.3
2″ 60.3 25.4 91.95 84 61.9 37 8 19.05 127.0
2 1/2″ 73.0 28.6 104.65 100 74.6 41 8 22.22 149.2
3″ 88.9 31.8 127.00 117 90.7 46 8 22.22 168.3
3 1/2″ 101.6 35.0 139.70 133 103.4 49 8 25.40 184.2
4″ 114.3 38.1 157.22 152 116.1 54 8 25.40 215.9
5″ 141.3 44.5 185.67 189 143.8 60 8 28.57 266.7
6″ 168.3 47.7 215.90 222 170.7 67 12 28.57 292.1
 8″ 219.1 55.6 269.75 273 221.5 76 12 31.75 349.2
 10″ 273.0 63.5 325.85 343 276.2 86 16 34.92 431.8
 12″ 323.8 66.7 381.00 400 327.0 92 20 34.92 489.0
 14″ 355.6 69.9 412.75 432 359.2 94 20 38.10 527.0
 16″ 406.4 76.2 469.90 495 410.5 106 20 41.27 603.2
 18″ 457.0 82.6 533.40 546 461.8 117 20 44.45 654.0
 20″ 508.0 88.9 584.20 610 513.1 127 24 44.45 723.9
 24″ 610.0 101.6 692.15 718 616.0 140 24 50.80 838.2
6,4 raised face not included in the E & H dimensions

Tolerances of Slip On Flanges in Chile

Outside Diameter
≤ 24 = 1.6 mm | > 24 = ± 3.2 mm		 Inside Diameter
≤ 10 = ± 0.8 mm | ≥ 12 = + 1.6 mm / – 0 mm
Diameter of Contact Face
1.6 mm Raised Face = ± 0.8 mm
6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm		 Outside Diameter of Hub
≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm
Diameter of Counterbore
Same as for Inside Diameter		 Drilling
Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm
Eccentricity of Bolt Circle with Respect to Facing
≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.
Thickness
≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0		 Length thru Hub
≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm

ASTM / ASME / AISI Slip-on Flanges Weight Chart in Chile

CLASS Nominal Pipe Size Socket Weld
150 lb ½ 2
¾ 2
1 2
1¼ 3
1½ 3
2 5
2½ 8
3 9
3½ 11
4 13
5 15
6 19
8 30
10 43
12 64
14 90
16 98
18 130
20 165
22 185
24 220

Materials of Slip on Flanges in Chile

Slip On Flange

Stainless Steel Slip on Flanges in Chile

Alloy Steel Slip on Flange

Alloy Steel Slip on Flanges in Chile

Carbon Steel Slip on Flanges

Carbon Steel Slip on Flanges in Chile

Duplex Steel Slip on Flanges

Duplex Steel Slip on Flanges in Chile

Super Duplex Steel Slip on Flanges

Super Duplex Steel Slip on Flanges in Chile

Nickel Alloy Slip on Flanges

Nickel Alloy Slip on Flanges in Chile

Slip on Flange Industrial Application in Chile

  • Transporting Materials Industry
  • Automotive industry
  • Homes and Buildings Industry
  • Plumbing Industry
  • Food Processing Industry
  • Paper & Pulp Industry
  • Food Industry
  • Heating & Air-conditioning Equipment
  • Sewerage Systems & Industrial Water Lines
  • Marine Applications
  • Nuclear Power Industry
  • Fossil Fuel Power Plants Industry
